Getting Started with AGS - Part 9

Cursors

It's easy to overlook mouse cursors, but they provide the essential interface between the player and the game world. In AGS, each mouse cursor provides a different mode of interaction to the player.

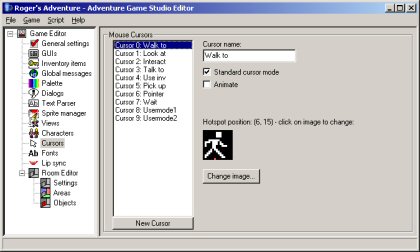

The Cursors pane

Unlike most of AGS, mouse cursors modes are not generic - that is, AGS has special coded behaviour for some of the cursors. This means that you are unable to customize what some of the cursor modes do - let's list these ones briefly:

Mode 0 (Walk to) - this will always move the player character to the co-ordinates at which the mouse was clicked
Mode 4 (Use inventory) - AGS will only allow this mode to be selected if the player character has an active inventory item, and it will always invoke the "Use inventory" interaction.
Mode 6 (Pointer) - this is used whenever a normal Windows-style mouse pointer is required. For example, when the user is prompted to select a dialog option; when a popup GUI is displayed, and so forth.
Mode 7 (Wait) - this cursor is shown whenever the player cannot interact with the game world (ie. during a cutscene). It is automatically shown during blocking script functions.

All the other cursors are 'normal' cursors, in that you can use them for whatever purposes you want.

If you want to create a Lucasarts-style game where the mouse cursor disappears during cutscenes, the easiest way to do it is simply to import a blank image over the Wait mouse cursor.

The Cursors editor pane is fairly self-explanatory. Click the "Change image" button to set a graphic for the cursor; and click inside the graphic to set the cursor's hotspot. (The hotspot sets which spot under the cursor will be activated when you click with it).

There are a couple of other options you can set for cursors, let's cover them briefly:

Standard Mode tells AGS that this is a normal user-selectable cursor. It is used when cycling through mouse cursors, to determine whether to use the cursor or skip over it. For example, if during the game you disable the current cursor, AGS will change to the next available Standard Mode.
Animate allows you to make an animated mouse cursor. If you check the box, additional options appear allowing you to choose which view to use (loop 0 of the view will be cycled continuously). You can also select "Only when over hotspot or object" to make the cursor only animate while it is over something that the player can interact with; and "Only when the mouse is moving" to do a QFG4-style cursor which only animates while the player is moving it around.

You can use the "New Cursor" button to create additional cursors to the standard 10. If you do so however, any extra cursors you create will not have interaction events created for them, so you will have to handle their clicks using the "Any Click" events.

Fonts

The default blank game comes with a couple of basic fonts, but you don't have to use them - you can import your own.

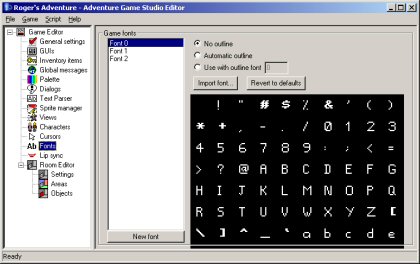

The Font Editor

By default, you'll see three fonts are available. Font 0 is the standard font used in message boxes. Font 1 is the speech font, used with lucasarts-style speech; and font 2 is an outline font for the speech font.

Outlines are pretty much essential for lucasarts-style speech. Since the text is drawn directly onto the screen and not onto a message box, without an outline it could be very hard to read the text, depending on what colour the screen happened to be behind it.

There are two ways to do outlines - AGS can do an automatic outline, or you can import a special outline font. They both have advantages:

Automatic outlining is easy to use - just check the option, and it works with any font.
Using an outline font is faster in the game, since it is just drawn once (whereas automatic outlining has to redraw the line of text 8 times).

Importing fonts

AGS supports both TrueType (TTF) and SCI (Sierra's format) fonts. To overwrite an existing font, simply select it and click the "Import font" button. To create a new font slot, click the "New font" button, then "Import font".

You should use SCI fonts wherever possible, since they are significantly faster to render than TTF fonts. Using TTF fonts can slow your game down, so only use them if you really need to.

Where can you get a SCI font? Well, there are three ways:

Create your own font and save it in SCI Font format, using the SCI Graphic Studio program.
Extract the font from a Sierra game, using the SCI Decoder program available on the internet (note however that this will have copyright implications for your game).
You can get a Sierra SCI Font Pack on the AGS website.

If you go to your Windows Fonts folder to try and import a TTF font, you will not be able to do so (double-clicking them will open them up in the Windows Font Viewer). Unfortunately there is nothing I can do about this - you must either type the filename in manually, or copy the font to another folder and import it from there.

By default, font 0 is used as the normal text font, and font 1 is used as the speech font. To use any additional fonts, the text script functions SetNormalFont and SetSpeechFont can be used to change the active fonts.

Conclusion

That's it for the "Getting Started" tutorials. I hope they've helped you to get a grasp of the AGS basics. If there's anything you didn't really understand or that you think should be covered but wasn't, please let us know on the Beginners Technical Forum, so that the tutorials can be improved to explain it better.
